BGP Lab 02. Konfigurasi iBGP Peering ( Loopback )

Assalamualaikum.wr.wb

Kesempatan kali ini saya akan memposting cara konfigurasi iBGP Peering ( Loopback ). Langsung aja cara konfignya

Konfigurasi pada R1 :

# system identity set name=R1

# interface bridge add name=loopback1

# interface bridge add name=loopback2

# routing bgp instance set default as=12 router-id=1.1.1.1

# ip address add address=1.1.1.1 interface=loopback1

# ip address add address=10.10.12.1/24 interface=ether2

# ip address add address=11.11.11.11  interface=loopback2

# ip route add distance=1 dst-address=22.22.22.22/32 gateway=10.10.12.2

# routing bgp network add network=1.1.1.1/32

# routing bgp peer add name-peer1 remote-address=22.22.22.22 remote-as=12 update-source=loopback2

Verifikasi :

[admin@R1]  >  routing bgp peer print detail

- BGP Advertisements

[admin@R1]  > routing bgp advertisements print

- Tabel Routing

[admin@R1]  > ip route print

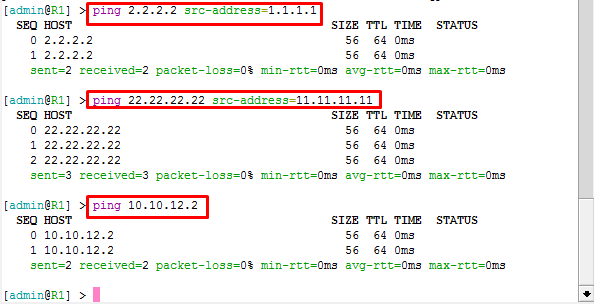

- Konektifitas antar node BGP

[admin@R1]  > ping 2.2.2.2 src-address=1.1.1.1

[admin@R1]  > ping 22.22.22.22 src-address=1.1.1.1

Konfigurasi pada R2 :

#system identity set name=R2

#interface bridge add name=loopback1 dan add name=loopback2

#routing bgp instance set default as=12 router-id=2.2.2.2

#ip address add address=2.2.2.2 interface=loopback1 network=2.2.2.2

#ip address add address=10.10.12.2/30 interface=ether1 network=10.10.12.0

#ip address add address=22.22.22.22 interface=loopback2 network=22.22.22.22

#ip route add distance=1 dst-address=11.11.11.11/32

#routing bgp network add network=2.2.2.2/32

Verifikasi

[admin@R2] > routing bgp peer print detail

-BGP Advertisement

[admin@R2] > routing bgp advertisements print

 -Tabel routing

[admin@R2] > ip route print

Konektifitas antar node BGP

[admin@R2] > ping 1.1.1.1 src-address=2.2.2.2

[admin@R2] > ping 11.11.11.11 src-address=22.22.22.22

[admin@R2] > ping 10.10.12.1

Sekian tutorial dari saya, semoga bermanfaat.

Wassalamualaikum.wr.wb.
